Desktop Indoor Air Quality Monitor with Temperature, Humidity, and CO2 Detection

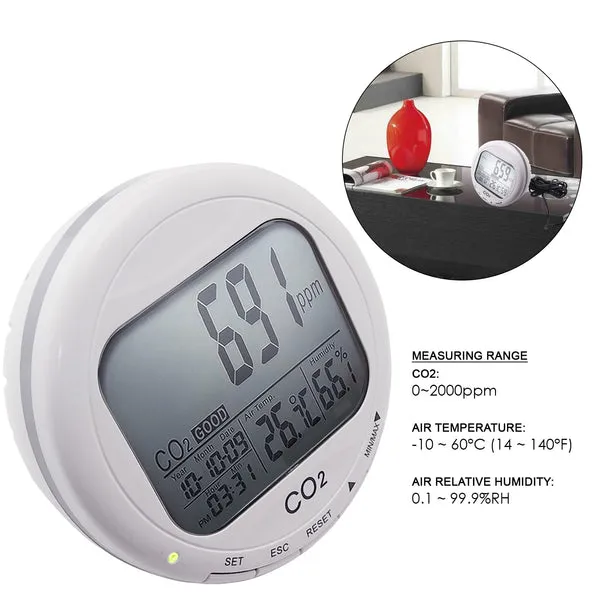

The CO2 Monitor is a desktop unit designed for fast and accurate measurement of CO2 levels, air temperature, and humidity. It features a triple LCD display with real-time clock and calendar, along with programmable alarms for enhanced indoor air quality (IAQ) monitoring. The unit is equipped with a 15° tilt angle for easy reading and includes both Automatic Baseline Calibration (ABC) and Manual Calibration options.

Features & Benefits

• Triple LCD Display: Simultaneously shows CO2 level, temperature, and humidity for comprehensive air quality monitoring.
• Real-Time Clock & Calendar: Allows easy tracking of air quality changes over time.
• 15° Tilt Angle: Provides an easy-to-read display for quick monitoring.
• Indoor Air Quality Indicator: Displays air quality levels as “Good,” “Normal,” or “Poor” based on CO2 concentration.
• NDIR Sensor: Maintenance-free Non-Dispersive Infrared (NDIR) sensor ensures stable and accurate CO2 detection.
• Audible & Visual Alarms: Alerts when CO2 levels exceed set limits and automatically stops when levels return to normal.
• Automatic Baseline Calibration (ABC): Automatically adjusts baseline readings for long-term accuracy.
• Manual Calibration: Allows manual adjustment of CO2 calibration with a calibration indicator.
• Max/Min Value Recall: Easily review maximum and minimum recorded CO2 levels for detailed analysis.
• Selectable Units: Choose between Celsius and Fahrenheit for temperature readings.
• CE Marking: Certified to meet European safety and health standards.

Specifications

• CO2 Measuring Range: 0 ~ 2000ppm (out of scale at 2001 ~ 9999ppm)
• Temperature Range: -10°C ~ 60°C (14°F ~ 140°F)
• Humidity Range: 0.1%RH ~ 99.9%RH
• Resolution:
  • CO2: 1ppm
  • Temperature: 0.1°C / 0.1°F
  • Humidity: 0.1%RH
• Accuracy:
  • CO2: ±50ppm ±5% of reading
  • Temperature: ±0.6°C / ±0.9°F
  • Humidity: ±5%RH (10~90% RH), ±7%RH (<10% & >90% RH)
• Response Time:
  • CO2: <2 minutes (90% step change)
  • Temperature: <2 minutes (90% step change)
  • Humidity: <10 minutes (90% step change)
• Air Quality Levels:
  • Good: 700ppm or below (user programmable)
  • Normal: 700 ~ 1000ppm (user programmable)
  • Poor: 1000ppm or above (user programmable)
• Alarm Threshold: Programmable for values above 1000ppm
• Operating Conditions: -10°C ~ 50°C, 5% ~ 80%RH (non-condensing)
• Storage Conditions: -20°C ~ 60°C, 5% ~ 90%RH (non-condensing)
• Display: LCD & Green LED
• Power Supply: 5V/0.5A power adaptor

This CO2 Monitor is ideal for IAQ diagnosis in schools, office buildings, hospitals, factories, and other environments where monitoring air quality is essential.
