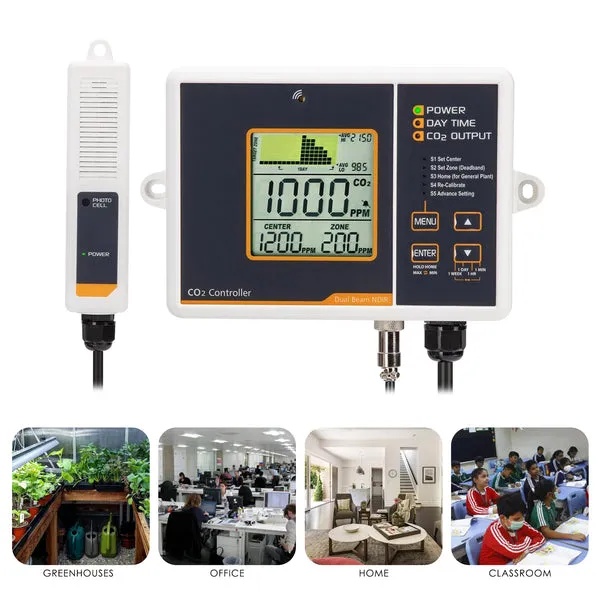

CO2 Controller & Monitor, Auto Detect Day/Night for Carbon Dioxide

This ready-to-install CO2 (Carbon Dioxide) Controller offers precise control and monitoring of CO2 levels, making it an ideal solution for greenhouses, residential areas, hydroponics, mushroom farms, and plant factories. Equipped with a dual-channel low drift NDIR sensor and a 4.6-meter long cable, it ensures accurate CO2 readings without the need for initial setup or calibration.

Features:

• CO2 controller/tracer
• Built-in Day/Night Photo-Cell sensor
• Chart with variable time zoom levels
• 2-Channel low drift NDIR sensor for more accurate CO2 reading
• Split-type remote sensor with 4.6-meter long cable
• Foolproof “Hold Home” function
• Ready to use with no initial setup or calibration needed
• Displays three main parameters constantly on screen:
  • Ambient Carbon Dioxide
  • Set Center value
  • Set Zone Value
• MAX/MIN Display

Specifications:

• CO2 Measurement:
  • Measurement Range: 0~5000ppm
  • Accuracy:
    • 0~3000ppm: ±50ppm or ±5% of reading, whichever is greater
    • Over 3000ppm: ±7%
  • Display Resolution:
    • 1ppm (0-1000)
    • 5ppm (1000-2000)
    • 10ppm (>2000)
  • Response Time:
    • <2min for 63% of step change
    • <4.6min for 90% step change
  • Warm-up Time: <30 sec
  • Power input: AC 100 ~ 240 VAC
• Operating Temperature: 32~122°F (0~50°C)
• Storage Temperature: -4~140°F (-20~60°C)
• Operating & Storage RH: 0~95%, non-condensing
• Dimensions:
  • Sensor Unit: 153 x 33 x 27mm (6.0 x 1.3 x 1.1 inch)
  • Control Unit: 195 x 145 x 44mm (7.7 x 5.7 x 1.7 inch)
• Weight: 700g (24.7 oz)
