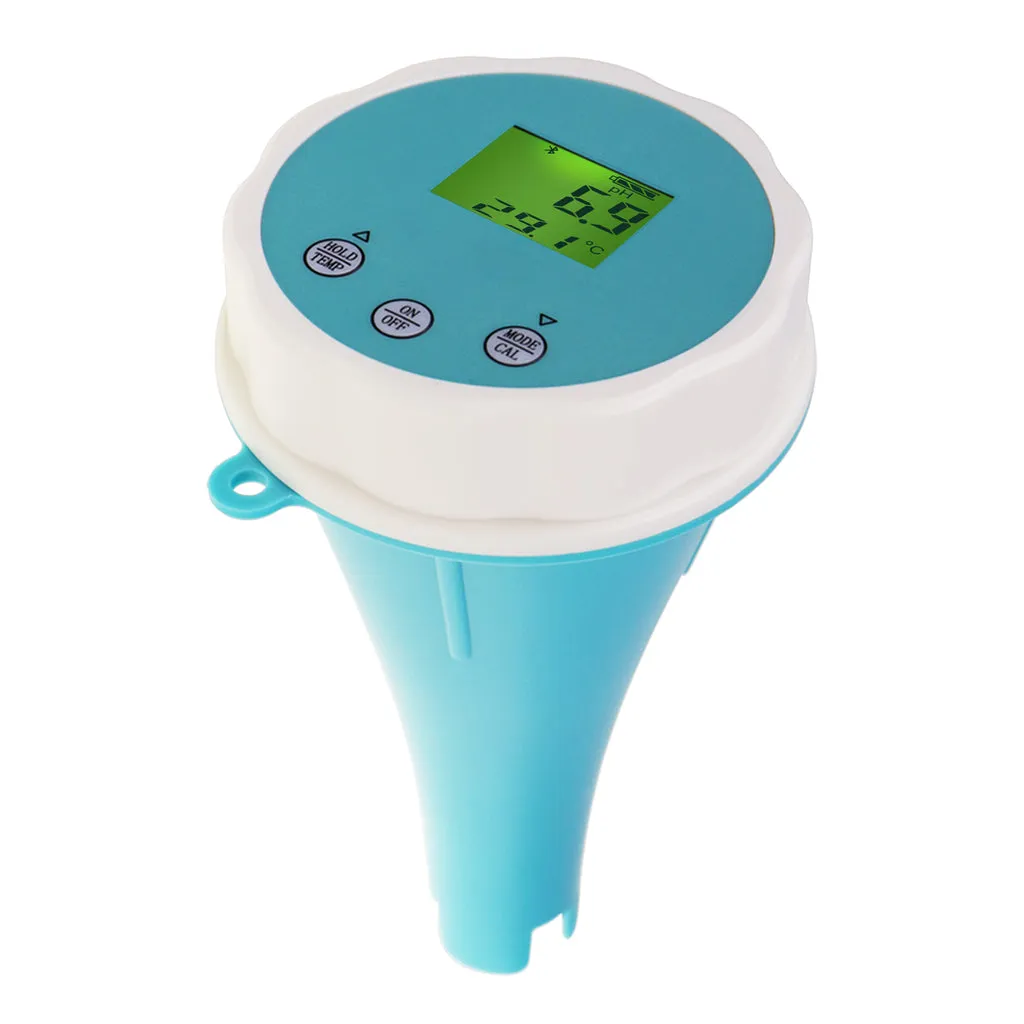

Bluetooth Floating Monitor for EC, Salinity, pH, ORP, and TDS

The 6-in-1 Digital Floating Monitor is a versatile and advanced device designed for monitoring and testing various water parameters in swimming pools, spas, tubs, and baths. Equipped with Bluetooth technology, it allows easy data transfer and real-time monitoring via your smartphone or tablet. The monitor features a data record function of up to 1000 records, enabling you to store and review measurements over time for better water quality management.

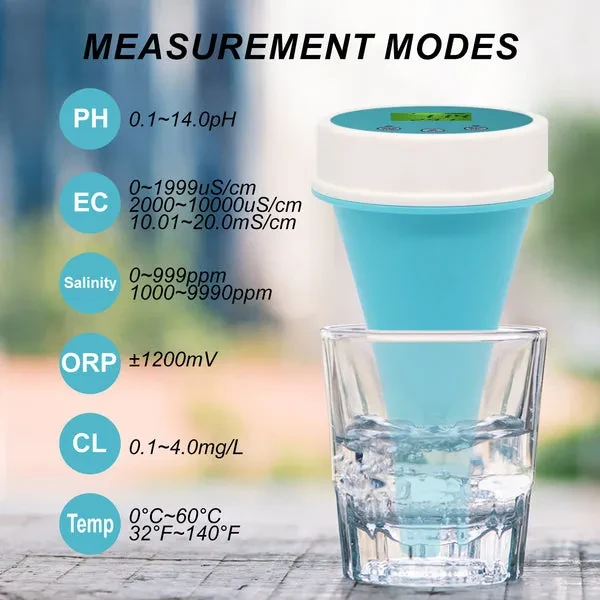

The monitor measures six key parameters:

• Water pH: Indicates the acidity or alkalinity of the water, crucial for maintaining a comfortable and safe environment for swimming and bathing.
• EC (Electrical Conductivity): Helps assess the water’s total dissolved solids, providing insights into its purity and potential contaminants.
• ORP (Oxidation-Reduction Potential): Indicates the water’s ability to sanitize and oxidize contaminants, such as bacteria and algae.
• Free Chlorine: Measures the free chlorine concentration in the water, essential for proper disinfection and sanitization levels.
• Salinity: Determines the salt content in the water, especially relevant for saltwater pools and spas.
• Temperature: Includes a temperature sensor for accurate water temperature measurement.

Features:

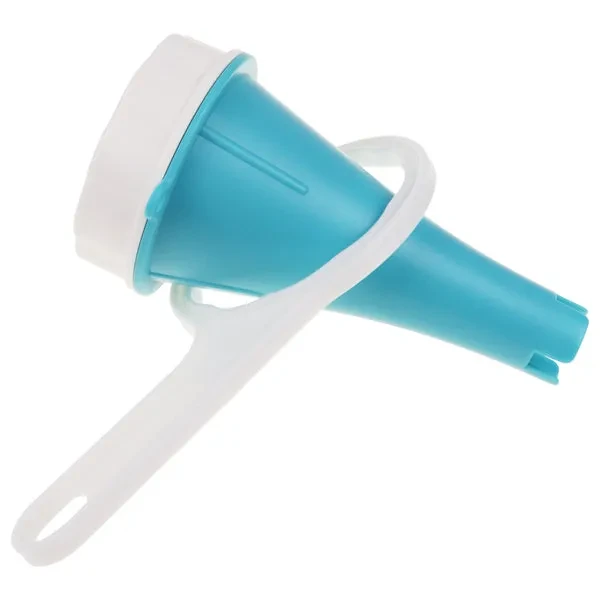

• Floating monitor

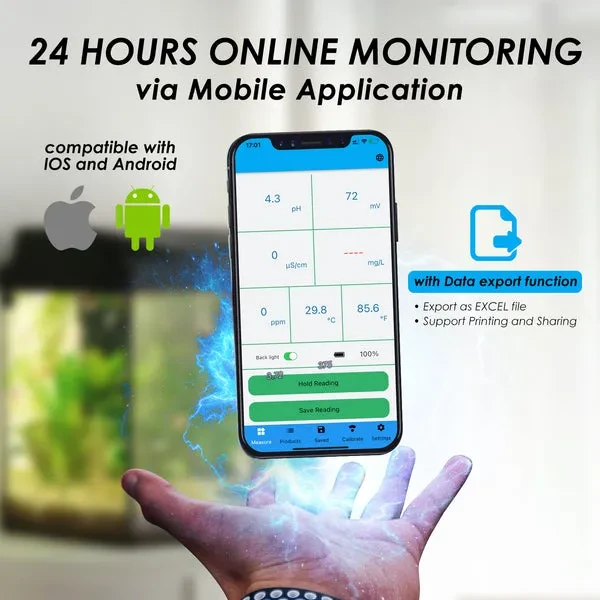

• Bluetooth connection via free APP “YINMIK” (iOS and Android)
• 24-hour monitoring with standby mode
• Data HOLD function

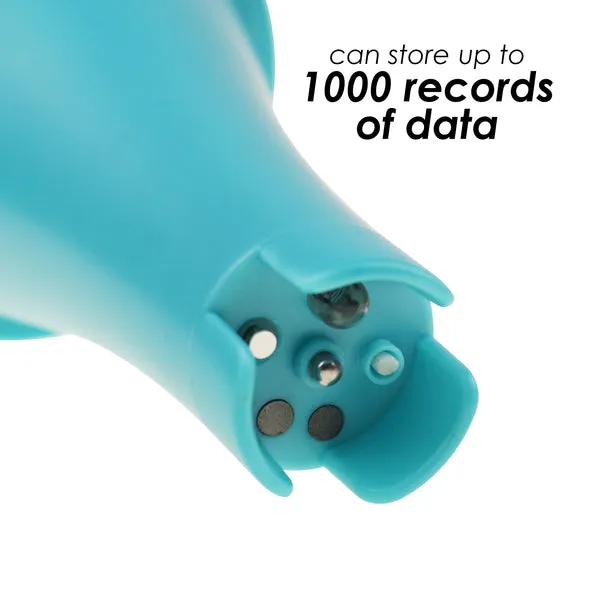

• Data memory storage (up to 1000 records)
• Data saved in Excel format
• Auto save data with disable function
• Set Max and Min Limit values for pH/EC/ORP/Free Chlorine

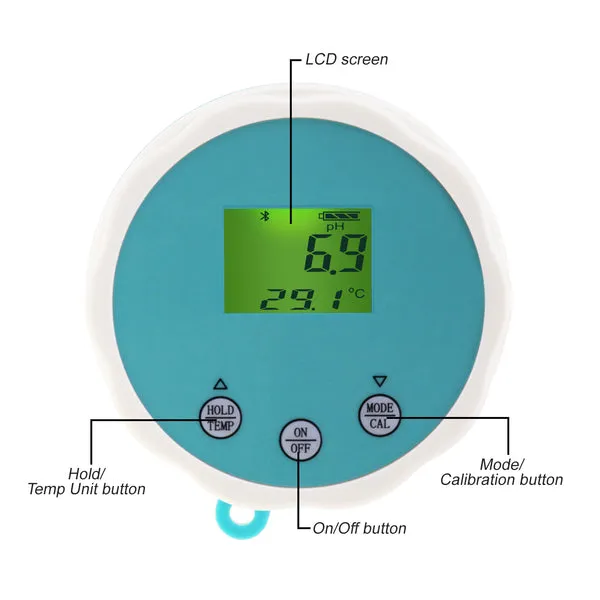

• Backlight function
• Selectable temperature unit (°C / °F)
• Buzzer function
• Easy calibration

Specifications:

• pH Measurement:

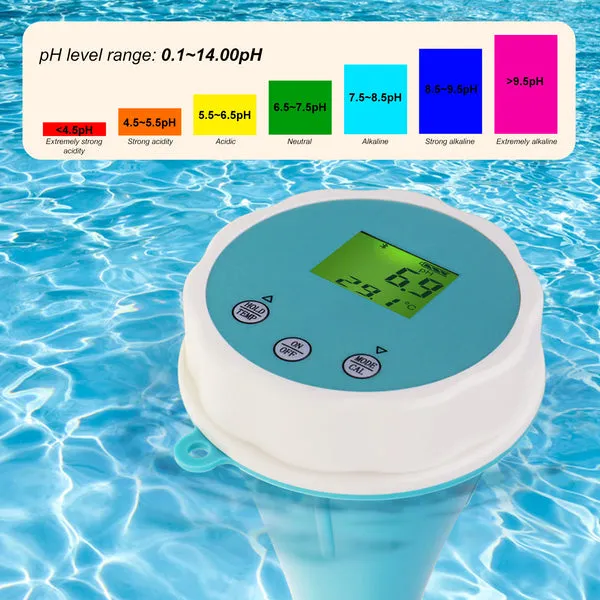

  • Range: 0.00~14.00pH
  • Resolution: 0.1pH
  • Accuracy: ±0.1pH
• ORP Measurement:
  • Range: -1200mV~+1200mV
  • Resolution: 1mV
  • Accuracy: ±15mV
• Conductivity (EC) Measurement:
  • Range: 0~1999 µS/cm; 2000~10000µS/cm; 10.01~20.00 mS/cm
  • Resolution: 1µS/cm; 10µS/cm; 0.01mS/cm
  • Accuracy: ±2% F.S
• Salinity Measurement:
  • Range: 0~999ppm; 1000~9990ppm
  • Resolution: 1ppm; 10ppm
  • Accuracy: ±2% F.S
• Chlorine Measurement:
  • Range: 0.1-4.0 mg/L
  • Resolution: 0.1mg/L
• Temperature Measurement:
  • Range: 0.0~60.0°C ; 32.0~140.0°F
  • Resolution: 0.1°C; 0.1°F
  • Accuracy: ±0.5°C

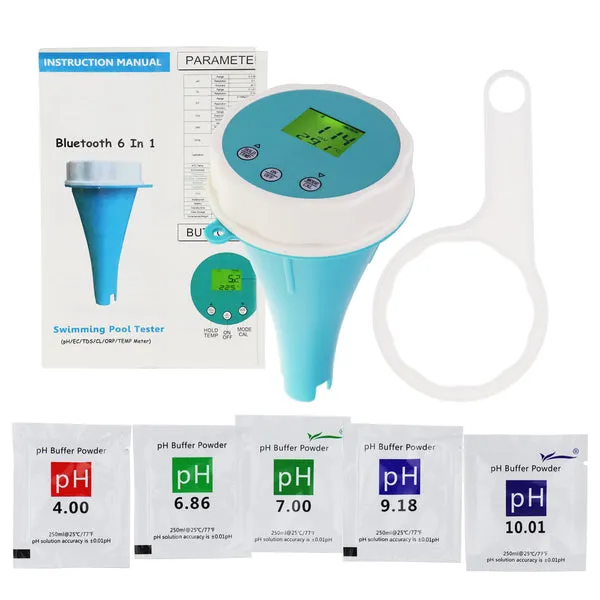

• Calibration:
  • pH: optional 2 sets of calibration mode (6.8 / 4.0 / 9.1; 7.0 / 4.0 / 10.0)
  • ORP: 256mV
  • EC/Salt: 1413µS/cm; 12.88mS/cm
• Automatic Temperature Compensation: 0.1~60°C
• EC Temperature Compensation: 0.1~3.0%/°C (Factory Default 2.0%/°C)
• Operating Environment: 0.1~60.0°C; RH max 90%
• Bluetooth: supports 5.2 version

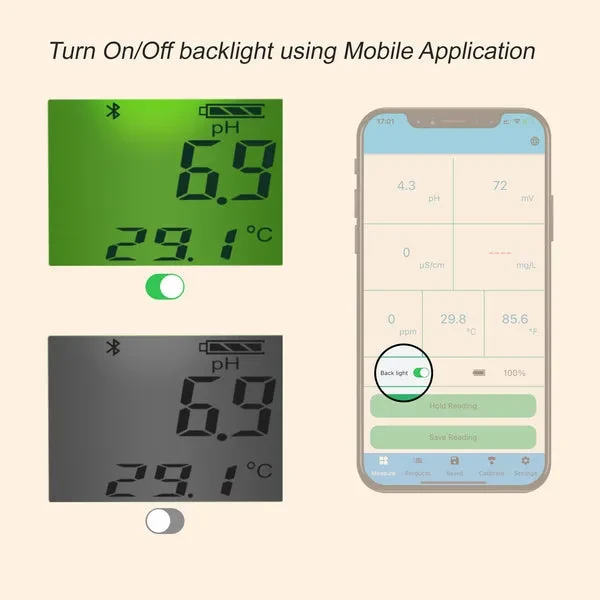

• Backlight: with backlight and support via mobile control
• Data storage: can store 1000 records
• Data format: Excel sheet, supports printing
• Waterproof: IP67

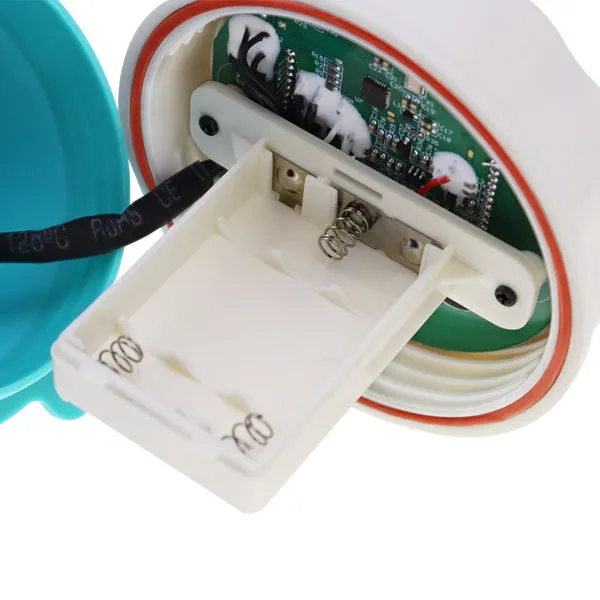

• Power Source: 3×AAA battery with battery indicator

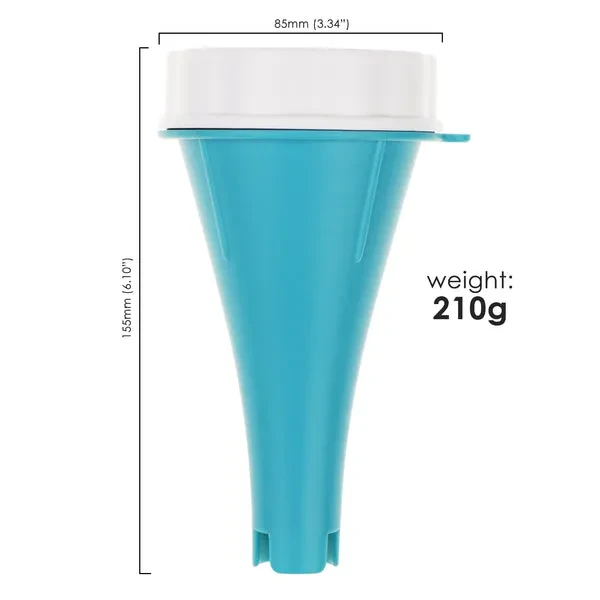

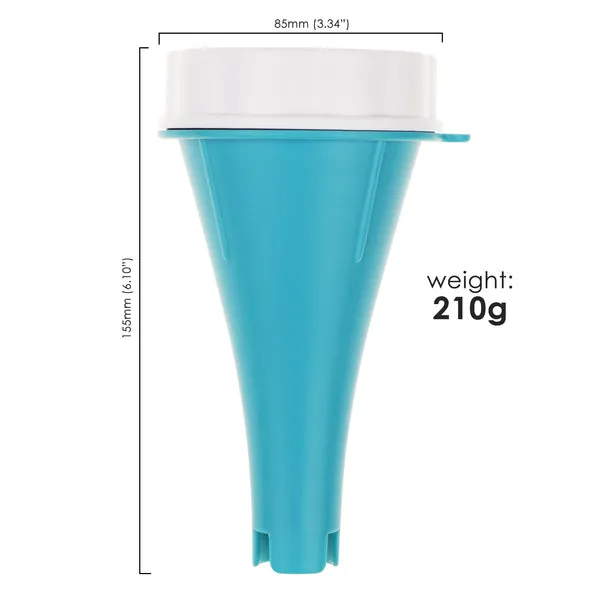

• Weight: approx. 210 g
• Dimensions: 155 x 85 mm
