Battery Capacity Tester for Automobile and Workshop Equipment

Digital Car Battery Tester with Cranking Test

This digital car battery tester is designed for reliable and easy battery analysis. It uses the latest conductivity measurement technology to provide accurate results, making it a must-have tool for testing the condition of lead-acid car batteries.

Features & Benefits

• Multifunction Battery Analyzer: This battery tester checks voltage, cold cranking amps (CCA), resistance, and overall battery condition with one key press for quick and precise results.
• Lead-Acid Battery Testing: Suitable for 12V lead-acid batteries including ECB, AGM, and GEL, making it ideal for cars, motorcycles, and tricycles.
• Print Test Results: Equipped with a USB interface, it allows you to connect to a computer and print test results for further analysis.

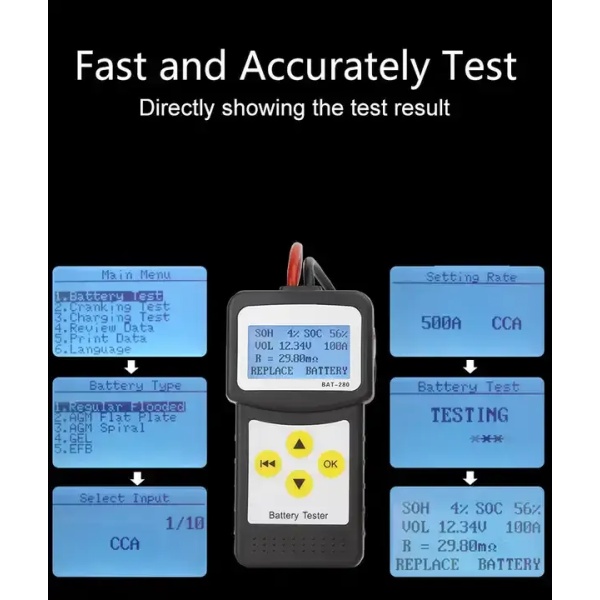

• Backlit LCD Display: The large, backlit LCD screen makes it easy to read test results in all lighting conditions.
• Durable Design: Built with acid-resistant ABS plastic, it’s designed to withstand tough environments while being easy to carry.

Specifications

• Battery Type: Lead-acid battery
• Battery Voltage: 12V
• Test Range: CCA (100-2000), DIN (100-1400), EN (100-2000), IEC (100-1400), JIS (26A17-245H52), GB (30-20AH)
• Test Categories: Battery test, Cranking test, Charging system test
• Test Results: Healthy, Electric quantity, Actual measurement, Resistance
• Working Temperature: -20°C to 50°C
• Shell Material: Acid-resistant ABS plastic
• Test Clip Length: 550 mm
• Product Size: 145 x 75 x 24 mm
• Product Weight: 232 g
