Accurate & Fast Combination pH Electrode with Long BNC Connector

Accurate & Fast Combination pH Electrode with Long BNC Connector

The pH level is a crucial indicator in our daily lives, reflecting the properties of liquids that influence nutrient utilization and microbial activity. Our E-313 combination pH electrode is designed to measure pH values accurately and quickly, making it an essential tool for laboratories, aquaculture, and the food and beverage industry.

With a measurement range of 0 to 14 pH, this electrode features a glass and reference electrode for high accuracy and rapid response. Its durable design includes a Teflon junction ring, ensuring stability during use. The 1.5-meter-long BNC connector cable provides convenience for pH testing across various applications.

Applications

This versatile electrode is suitable for scientific experiments, clinical testing, food processing, and monitoring water quality in various environments, including fishing ponds and swimming pools.

Features

• Long cable replacement pH electrode
• Capable of measuring pH levels in seawater and acid rain
• 50 Ohm BNC type connector for secure connections
• Durable glass bulb design
• Teflon junction ring for enhanced performance

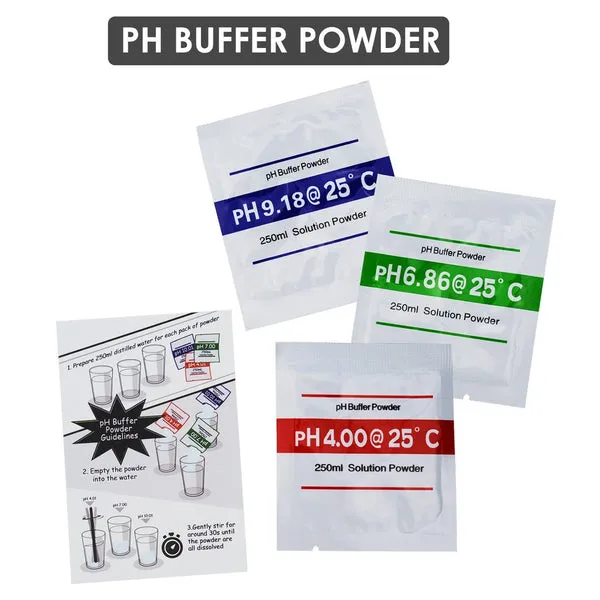

• Easy calibration with your pH measuring device
• Accurate pH monitoring for reliable results
• Comes with a protective cap for safe storage

Specifications

• Measurement Range: 0~14 pH
• Sensor Type: General-purpose combination pH electrode
• Dimensions: Φ12 x 160 mm
• Construction Material: Polymer housing and glass bulb
• Working Temperature: 0~60°C (32~140°F)
• Zero Potential: 7.0 ± 0.25 pH (at 25°C/ 77°F)
• Percentage of Slope: ≥ 97% (at 25°C/ 77°F)
• Internal Resistance: ≤ 250 MΩ (at 25°C/ 77°F)
• Alkaline Error: 0.2 pH (at 25°C/ 77°F)
• Response Time: ≤ 1 min
• Connection: 50 Ohm BNC with fixed cable
• Cable Length: 150 cm (59 inches)

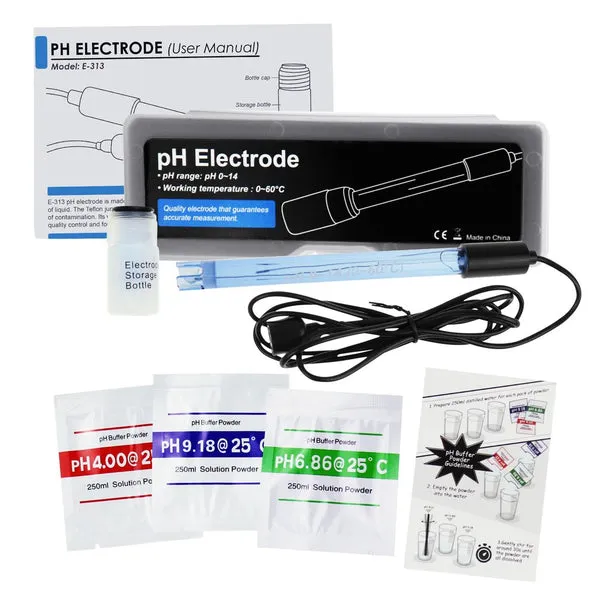

• Packaging: Hard plastic box with sponge mold for protection
