AC / DC Gaussmeter for Magnetic Field Strength Teslameter

The Magnetic Field Strength Meter is designed to accurately measure magnetic fields generated by both Direct Current (DC) and Alternating Current (AC). This versatile instrument is ideal for a range of applications including measuring residual magnetic fields in mechanical parts, assessing magnetic fields of motors, and detecting magnetic field leakage from superconductive magnets.

Applications

• Measure magnetic fields from Direct Current (DC) and Alternating Current (AC) within the range of 40~500Hz
• Assess residual magnetic fields after processing mechanical parts
• Measure stress-induced residual magnetic fields in stainless steel
• Determine the magnetic force of magnetic materials
• Measure natural magnetism in various steel materials
• Evaluate magnetic field strength in motors and other electrical appliances
• Measure magnetic field strength of permanent magnets
• Detect magnetic field leakage from superconductive magnets

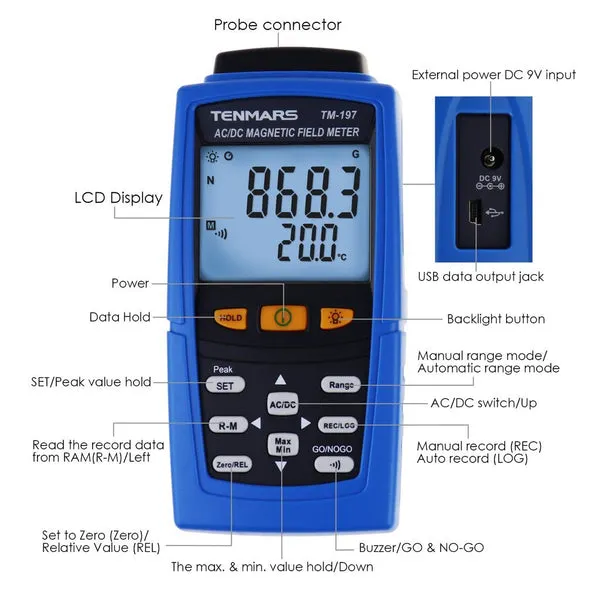

Features

• Data HOLD and backlight function for easy reading
• Automatic and manual range functions
• Relative, Peak Hold, and Real-time Zeroing functions
• Manual and Auto Record options with up to 7000 logs
• ON/OFF Buzzer and MAX/MIN value display
• AC/DC magnetic field measurement switching

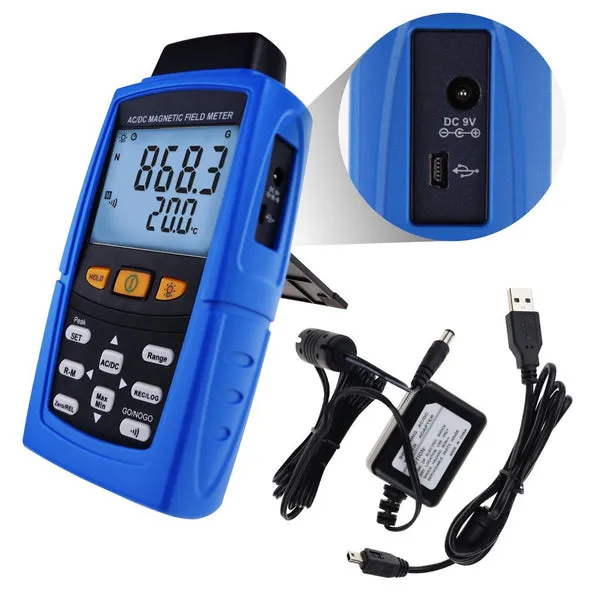

• Data transfer via USB cable and CD software
• Selectable measurement units (G / mT, °C / °F)
• Calendar and time settings (year/month/date and hour/minute)
• Auto and Manual power off functions
• Battery low indicator
• Compatible with Windows 7 / 10 operating systems
• Quality product made in Taiwan

Specifications

• Screen: 5-digit LCD screen displaying up to 30,000 values
• Measurement Range:
  • 0~3000 mT (milli Tesla) / 0~30,000 G (Gauss)
  • Conversion: 1 mT = 10 G
• Recording:
  • Manual: Up to 200 logs
  • Automatic: Up to 7000 logs (record interval setup via PC)
• Electrical Specifications:
  • DC milli Tesla: Range 300.00 mT to 3000.0 mT; Accuracy ±(4% + 10 dgt)
  • DC Gauss: Range 3000.0 G to 30,000 G; Accuracy ±(4% + 10 dgt)
  • AC milli Tesla: Range 150.00 mT to 1500.0 mT; Accuracy ±(5% + 20 dgt)
  • AC Gauss: Range 1500.0 G to 15,000 G; Accuracy ±(5% + 20 dgt)
• Temperature:
  • Range: -20~50°C (-4~122°F)
  • Resolution: ±0.1°C (±0.1°F)
  • Tolerance: ±1.0°C (±1.8°F)
• Operating Environment: 5~40°C (41~104°F), <80% RH
• Storage Environment: 0~50°C (32~122°F), <70% RH
• Weight: Approx. 320g (including battery)
• Dimensions: 156 x 73 x 35 mm
