All-in-One 7-Inch Camera Tester with CVI, TVI, AHD, 8MP EX-SDI, HD-SDI, and 3G-SDI Support
Availability:
In stock
$890.01 $1,088.01
In stock

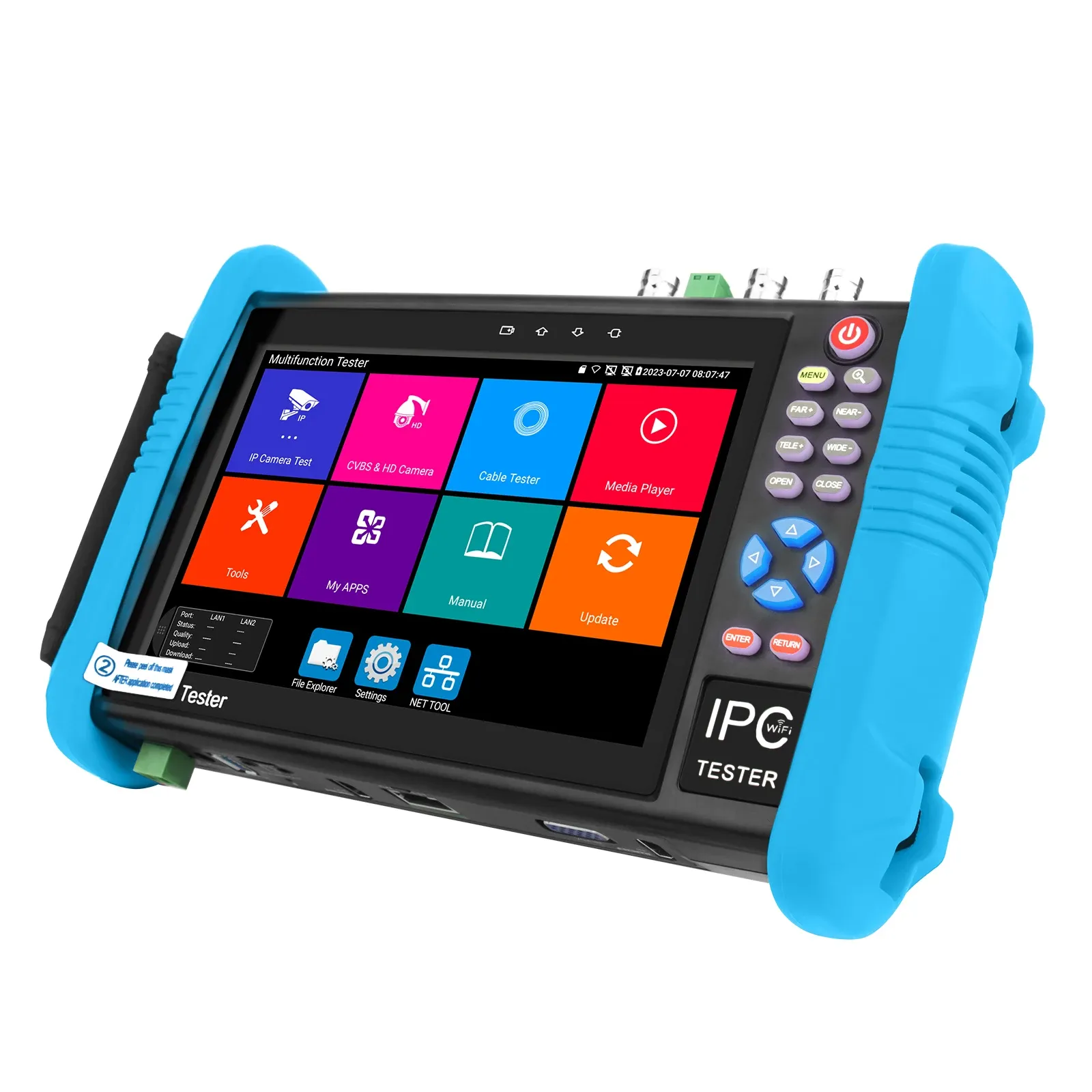

The All-in-one IPC CCTV Camera Tester is a comprehensive tool designed to test and configure IPC and CCTV cameras, ensuring efficient installation and troubleshooting. With its advanced features, this tester supports multiple camera types, including CVI, TVI, AHD, and more, providing an ideal solution for security professionals.
Features & Benefits

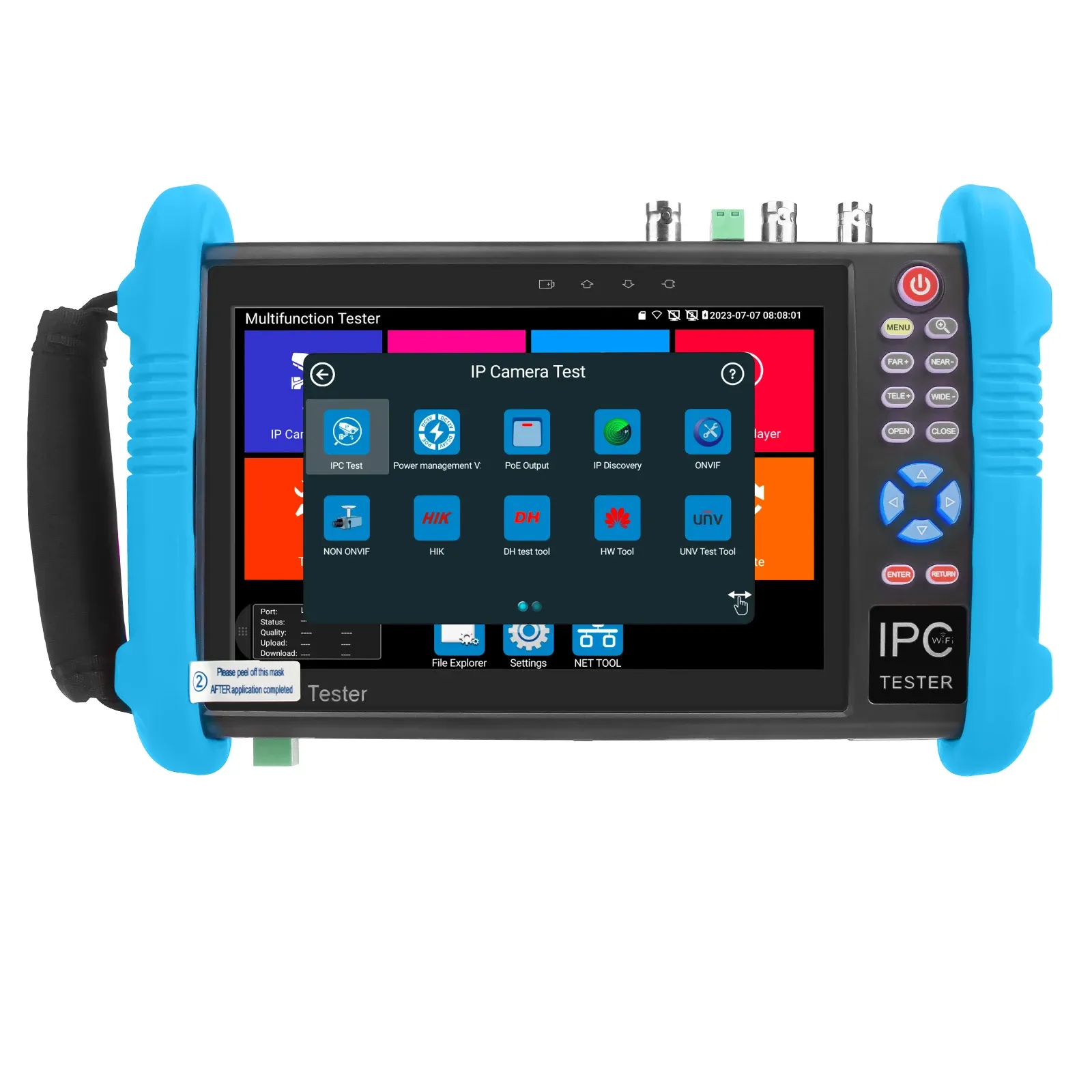

- 7-inch Retina Touch Screen: High-definition display with 1920*1200 resolution for clear and precise visuals.

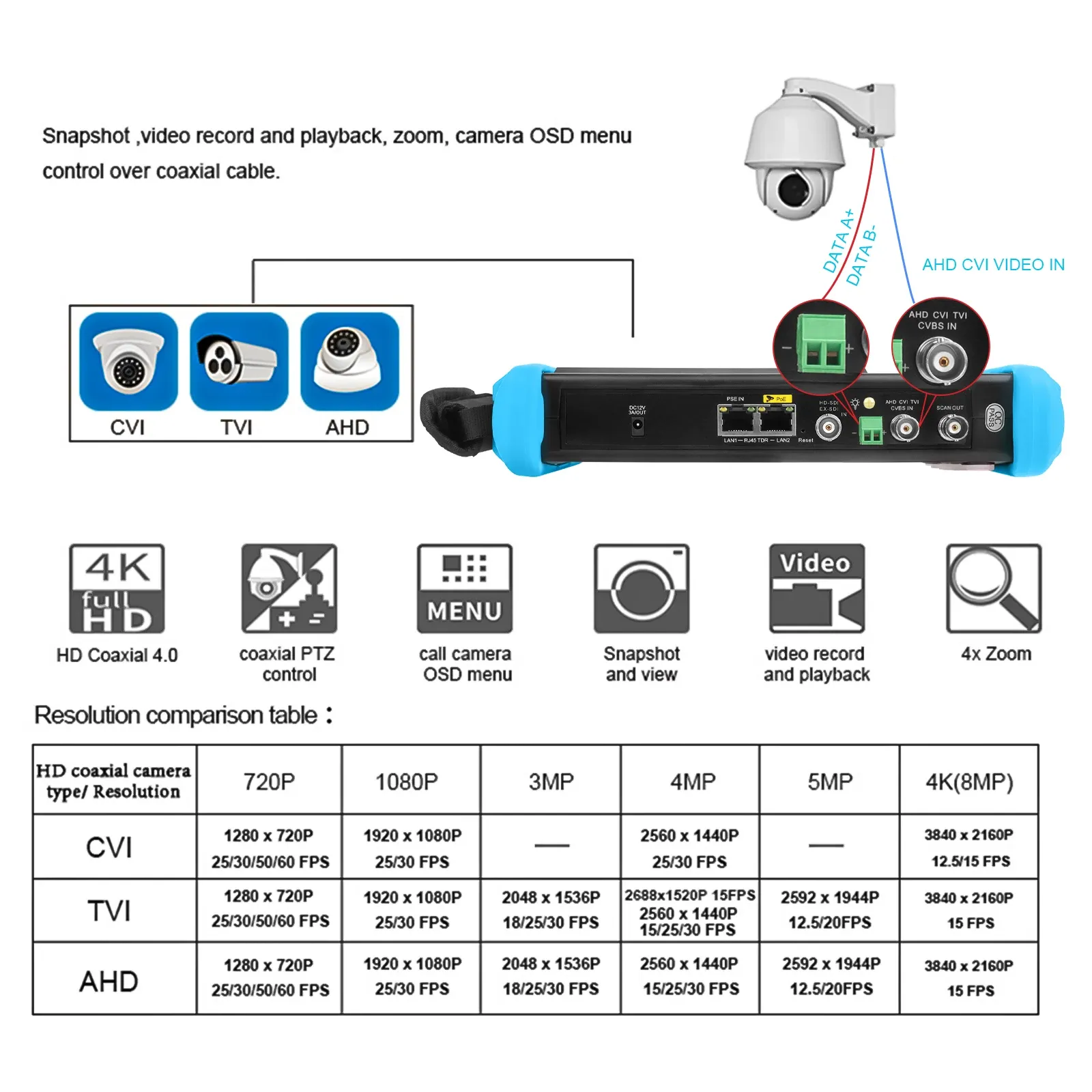

- Multi-Camera Support: Supports 8MP CVI, TVI, AHD, EX-SDI, HD-SDI, and 3G-SDI cameras.
- H.265/H.264 Video Display: Capable of displaying 4K video via mainstream formats.
- ONVIF Camera Testing: Compatible with popular brands like Dahua, Hikvision, Axis, and more.
- Built-in WiFi: Create a WiFi hotspot for enhanced network connectivity.

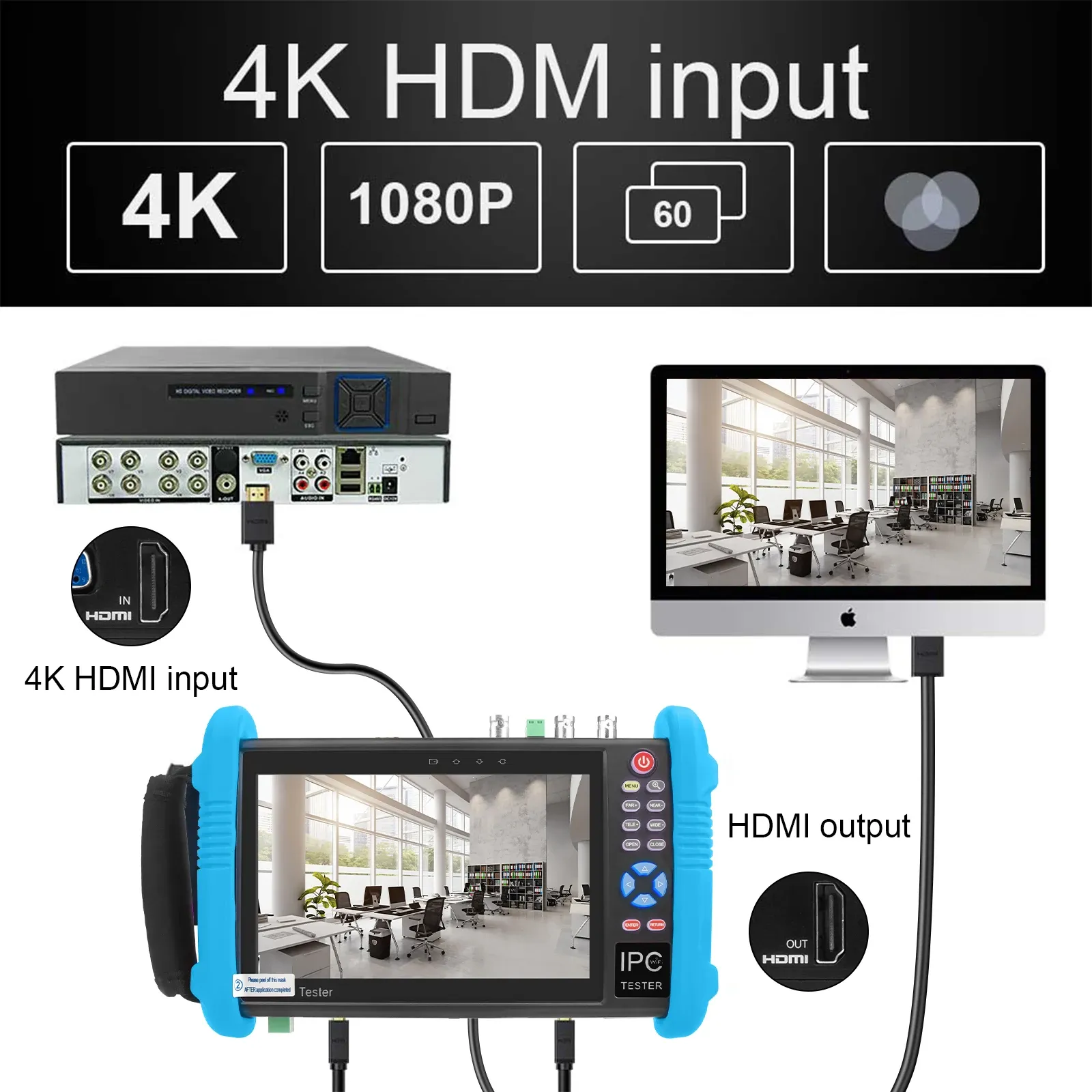

- HDMI Input & Output: Supports 1080p for high-quality video testing.
- PoE Power Output: Delivers DC12V 3A or DC48V PoE power output, with a maximum power of 25.5W.
- Rapid ONVIF: Automatically view video and generate testing reports.

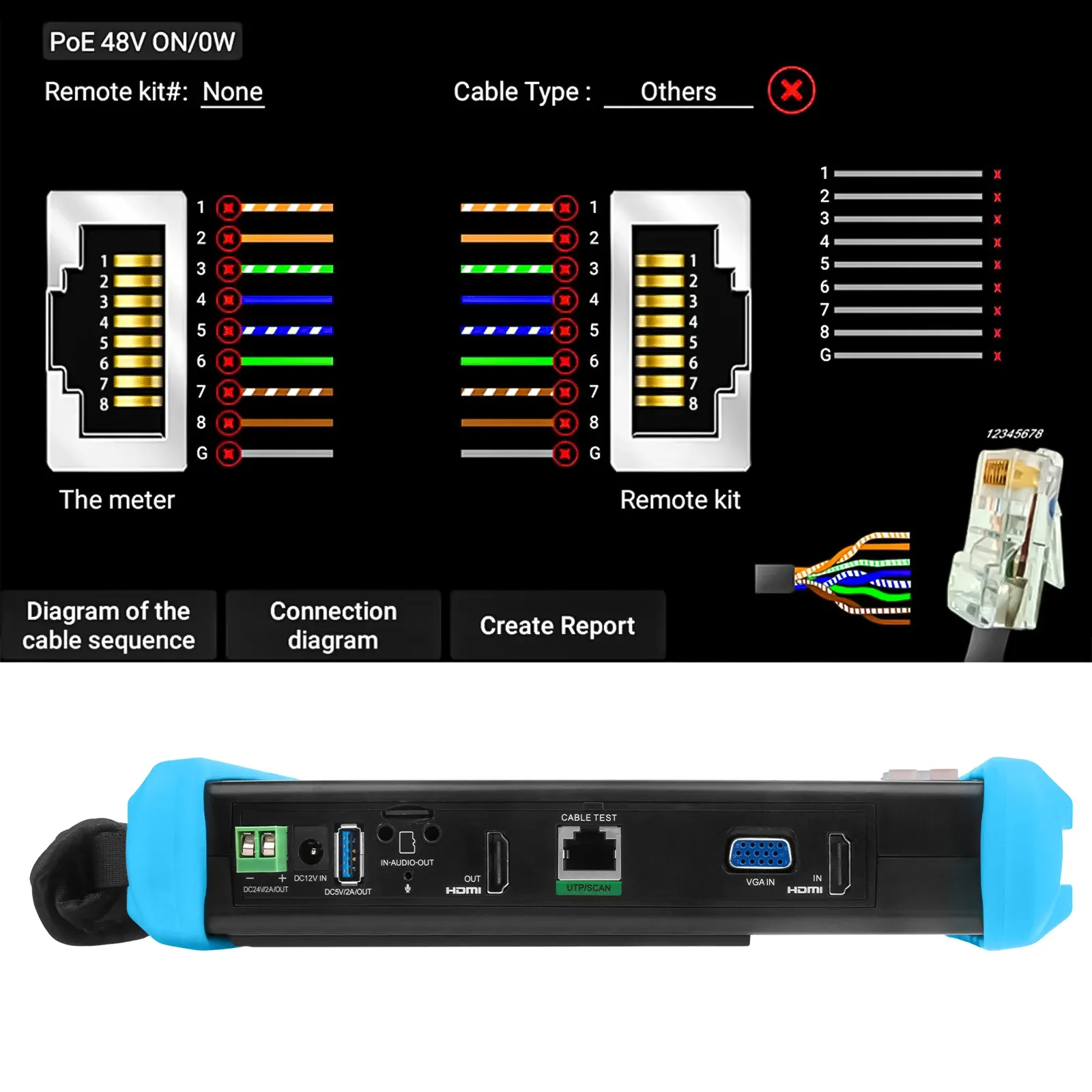

- Advanced Cable Testing: UTP cable tester and RJ45 cable TDR test for cable quality analysis.
- Tester Play: Simultaneously displays video on the tester, mobile phone, and PC.

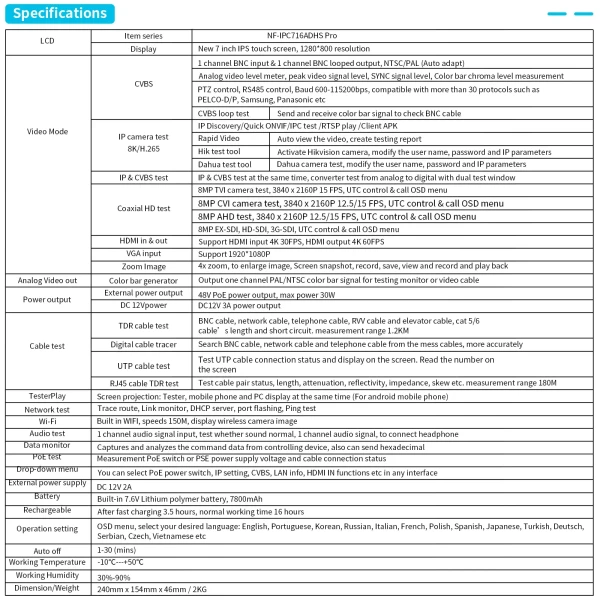

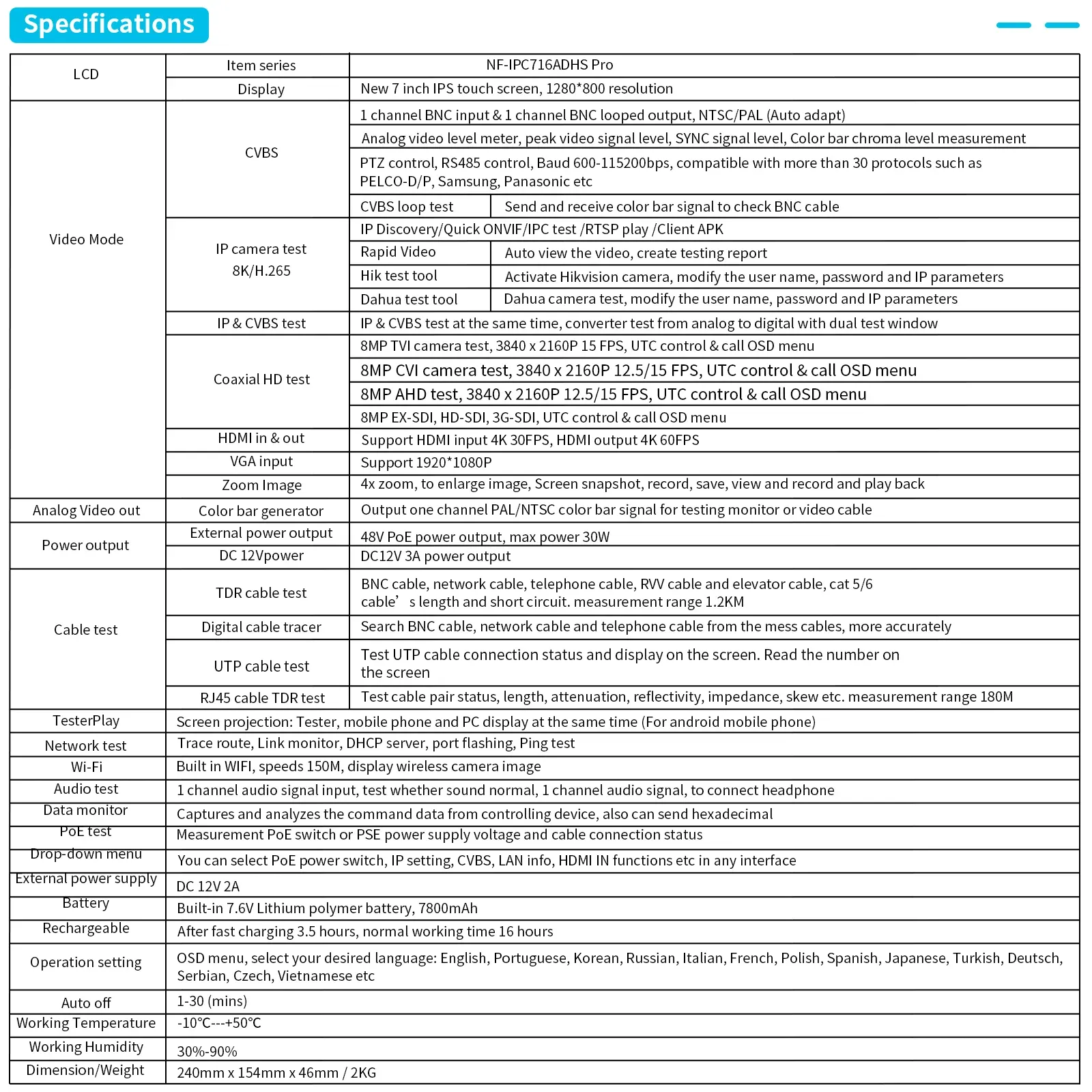

Specifications
- Display: 7-inch Retina touch screen (1920*1200 resolution)
- Power Output: DC12V 3A, 48V PoE (max 25.5W)
- Supported Camera Types: 8MP CVI/TVI/AHD/EX-SDI/HD-SDI/3G-SDI

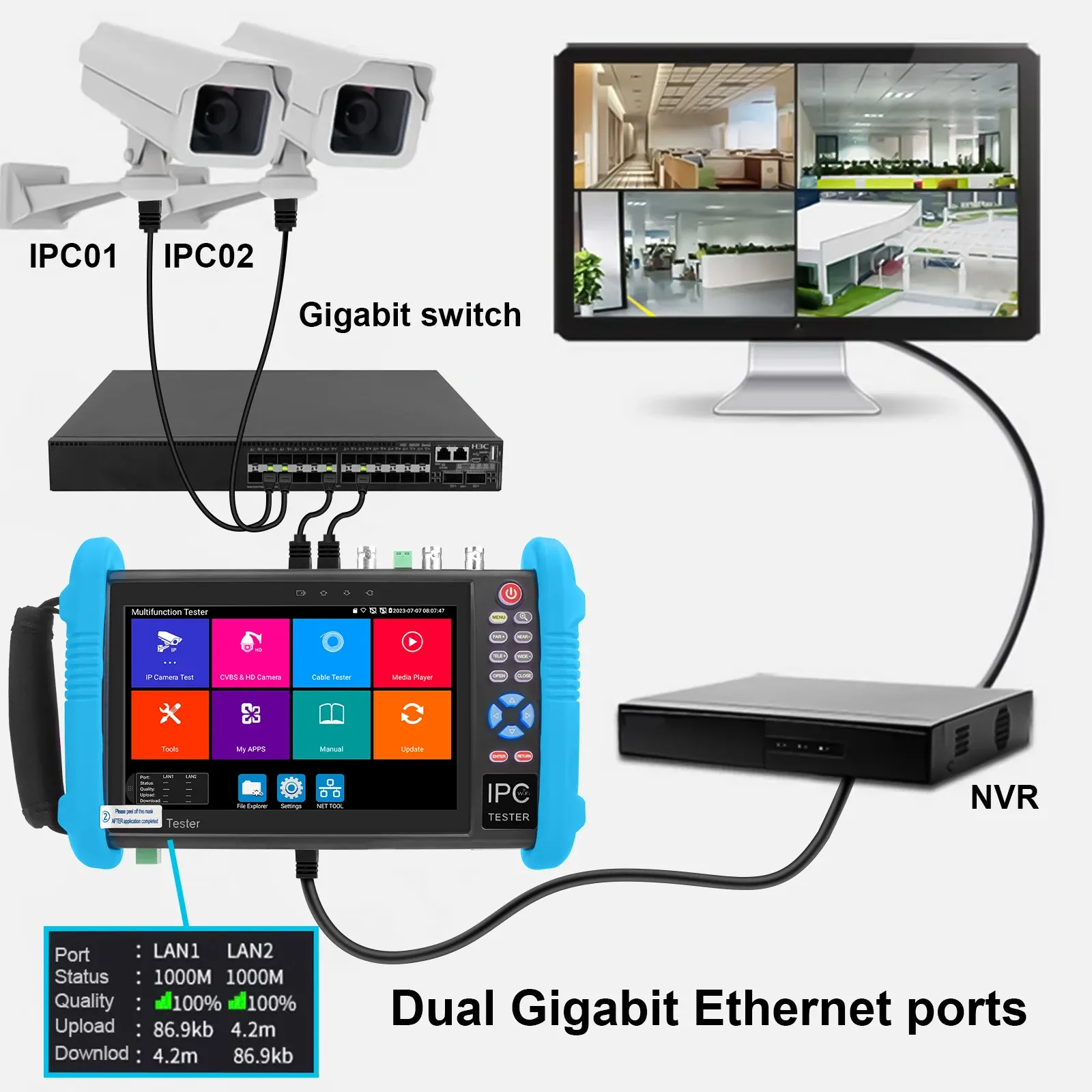

- Network Features: IP&CVBS Test, UTP Cable Test, RJ45 Cable TDR Test, Network Test, Data Monitor, PoE Test

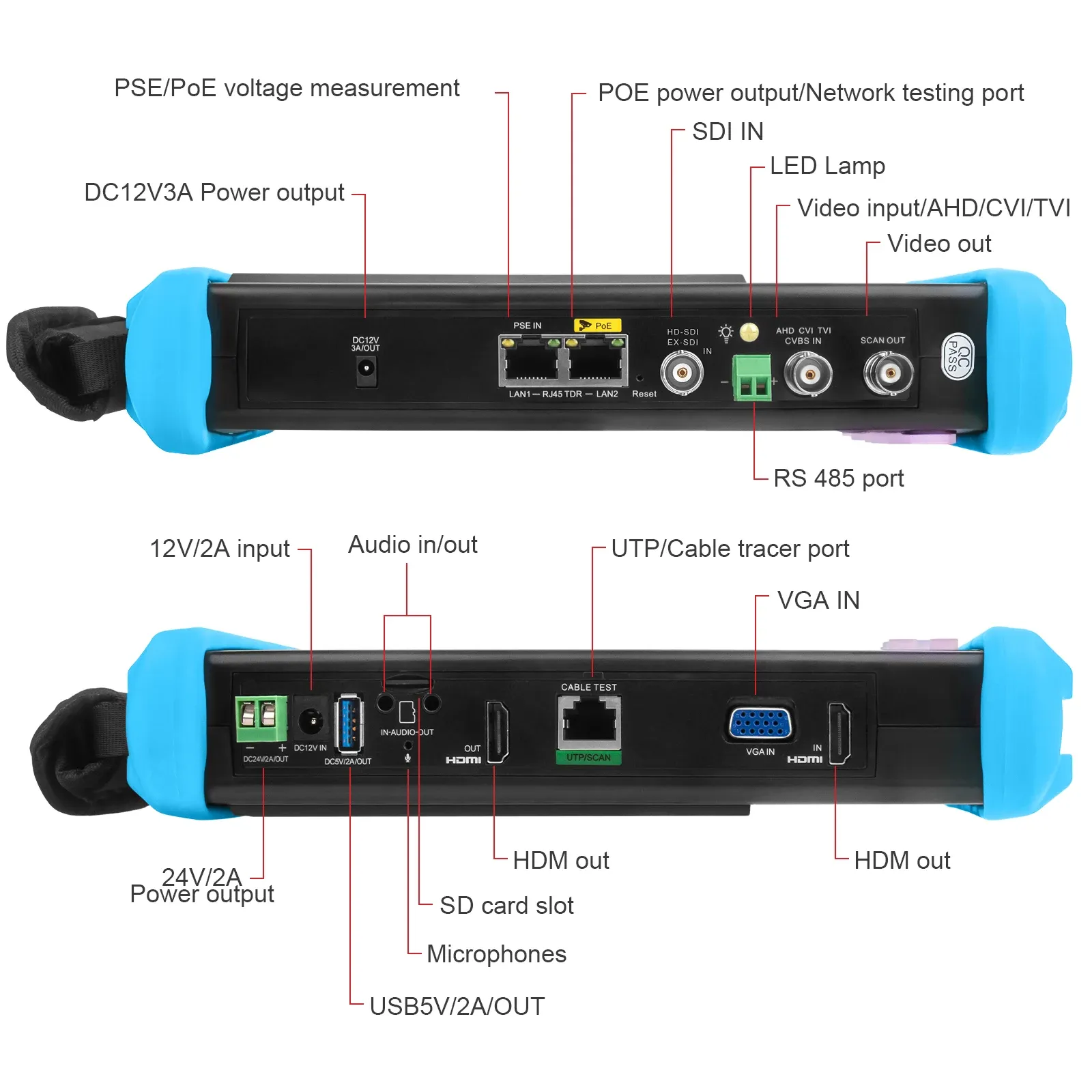

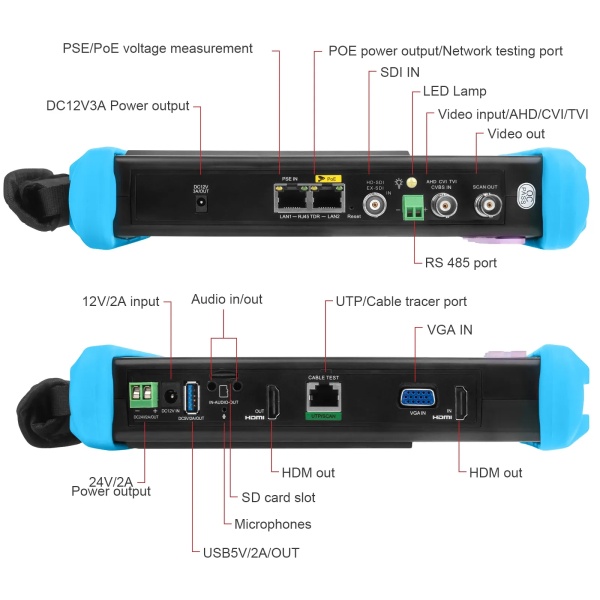

- Input/Output: HDMI input/output (1080p), CVBS Loop Test, Analog Video Out
- Battery: Built-in 7.6V Lithium polymer battery (7800mAh), 16 hours working time
- Charging Time: 5-6 hours
- Operating Temperature: -10°C to +50°C
This IPC CCTV Camera Tester offers a robust and versatile solution for camera testing and configuration, featuring support for a wide range of camera formats, advanced cable testing, and PoE power output for seamless installations.
