2-in-1 Wired/Wireless Fish Finder, 100m Wired/40m Wireless, with Bottom Contour

This fish finder features an Adjustable Dot Matrix FSTN LCD screen with zoom capability, allowing users to magnify specific depths for more detailed observation. The device offers both manual and automatic zooming functions, adjustable settings, and audible alarms. It includes a controllable 8-LED backlight, alarms for detecting fish size, and an audible alert for wireless communication loss. This versatile fish finder is suitable for use in freshwater, saltwater, and icy conditions, and can be paired with rods, lines, roach poles, and bait boats. It includes a wired transducer and a wireless sensor, with multiple mounting options to ensure optimal performance.

Features

• 2-in-1 Wired Transducer with a 45° beam angle & Wireless Sensor with a 90° beam angle
• Functions as both a fish finder and a depth sounder
• Selectable units: Meter or Feet and °F or °C
• Built-in water temperature sensor for both transducer sonar and wireless sensor
• Simulation mode for testing
• Auto and manual depth range settings (with disable feature)
• Depth Range: 40m/131ft (Wireless Sonar) and 100m/328ft (Wired Transducer)
• Adjustable high-contrast FSTN LCD screen with 160V x 132H resolution
• Adjustable sonar sensitivity and contrast settings
• Adjustable depth range, fish, and depth alarm settings (with disable feature)
• Auto & manual zoom function
• High frequency: 200kHz (transducer) / 125kHz (wireless)
• Wide wireless operation range: 70m/210ft
• Live-update display of bottom contour
• Fish depth location displayed in units or specific depth figures
• 8-LED backlight with controllable settings on all 4 sides
• Fish icon display for large, medium, and small fish
• Option to view raw sonar returns or clear fish icons
• Four ways to view bottom contour
• Option to disable all alarms with one step
• Wireless sensor signal strength indicator with alarm for signal loss
• Sensitivity indicator for wired transducer
• Automatic shutdown for wireless sensor when out of water
• 100% waterproof floating sensor
• IPX4 water-resistant design for main unit
• 150ft maximum RF wireless sonar range (if water is smooth)
• Battery strength indicator and power save mode
• Big and small fish identification with school detection

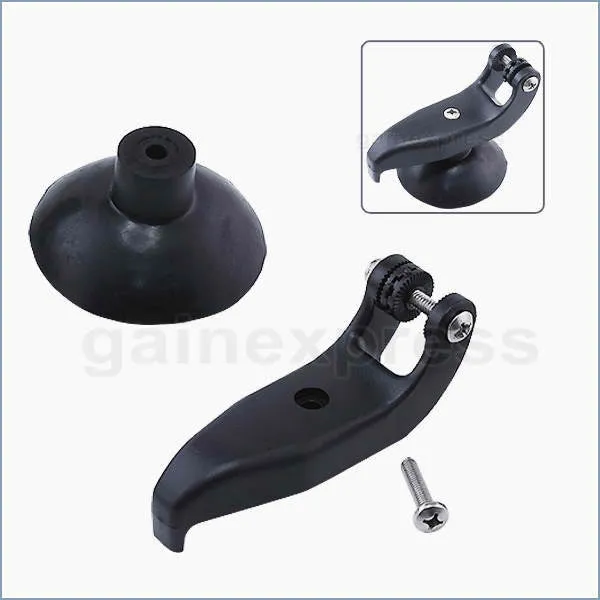

• Includes transducer with transom mount and suction cup system for boat or vessel mounting

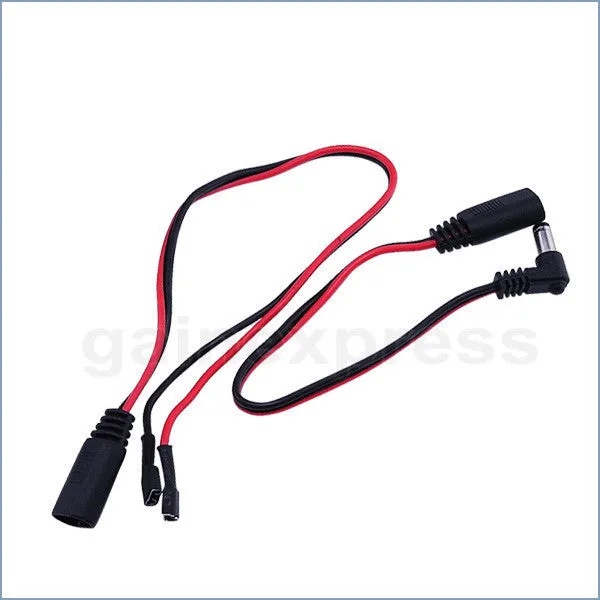

• Dual power supply options: 10~20V DC or AA alkaline batteries
• Portable case for main unit
• Built-in memory stores sonar settings when the unit is turned off
• Complies with CE and RoHS standards

Specifications

• Boat Fish Finder (Main Unit):
• Display: High-contrast FSTN LCD, 4-level grayscale, 160V x 132H
• Display Size: 83 x 71mm (LxW)
• Backlight: 8 White LEDs
• Depth Units: Meters / Feet
• Operational Wireless Frequency: 433.93 MHz
• Operational Temperature: -10 ~ 50°C (14 ~ 122°F)
• Power Input: 10~20V DC or 8 x 1.5V Alkaline AA Batteries (not included)
• Power Output (RMS): 100W
• Power Output (Peak-to-Peak): 800W
• Target Separation: 2.5 inches
• Size: approx. 242 x 191 x 105mm (LxWxD)
• Weight: approx. 698g
• Wired Transducer:
• Depth Capability/Range: 100m (328ft)
• Operating Frequency: 200kHz
• Coverage: 45 degrees beam angle
• Built-in Temperature Sensor
• Transducer Cable Length: 8m (26ft)
• Wireless Sonar Sensor:
• Depth Capability/Range: 0.6 ~ 40m (2 ~ 131Ft)
• Operating Frequency: 125kHz
• Coverage: 90 degrees beam angle
• Built-in Temperature Sensor
• Operation Range: 70m (210ft)
• Power Supply: 1 x 3V CR2032 Button Cell Battery (included)
